    Airtech Peel-ply ECONOSTITCH RED (1520mm)
    Airtech Peel-ply ECONOSTITCH RED (1520mm)

Peel-ply ECONOSTITCH RED (1520mm)

zł12.93

(zł13.00 za 1mb)

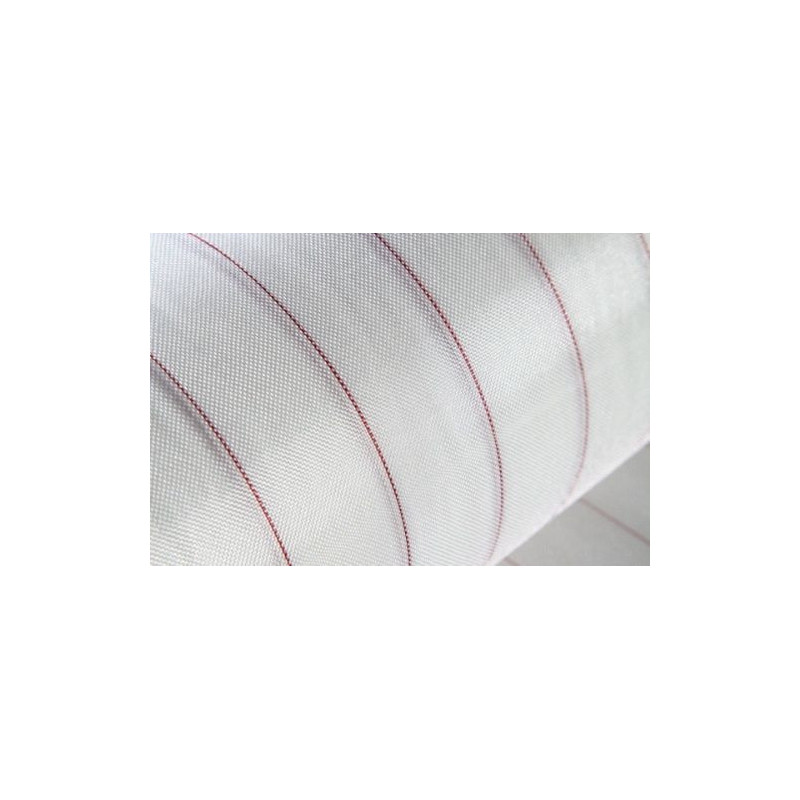

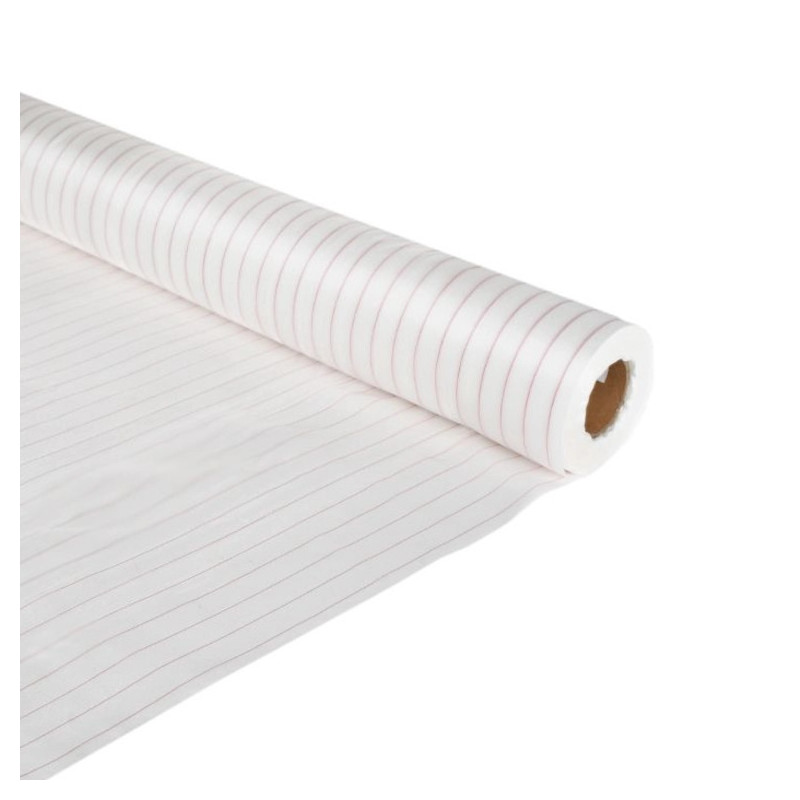

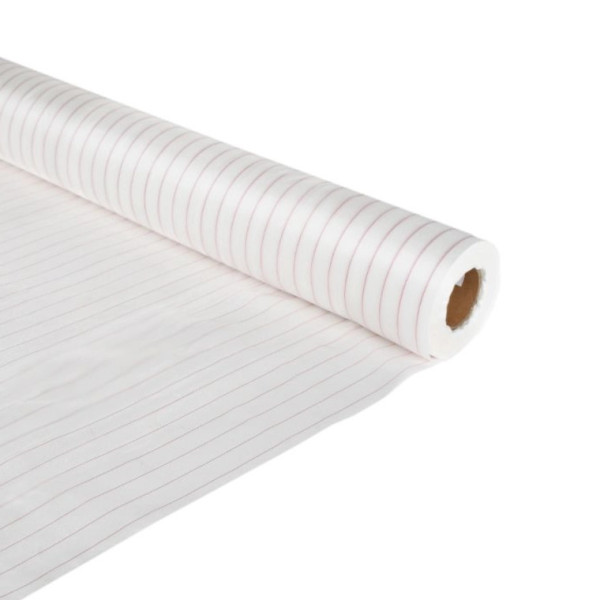

Econostitch® is a heat set and scoured nylon peel ply with red tracers which make this peel ply more visible before and after a cure, reducing the possibility of the peel ply being left on the part.

Quantity
Add to wishlist

  Delivery terms

§ 6 DELIVERY

  Return of goods

§ 9 RIGHT OF WITHDRAWAL

Econostitch® is a heat set and scoured nylon peel ply with red tracers which make this peel ply more visible before and after a cure, reducing the possibility of the peel ply being left on the part.

Our Econo peel plies are designed to work in resin infusion or hand lay-up processes

BENEFITS

  • Peel plies strip off of cured laminates leaving textured surface, reducing time spent hand finishing
  • Lower cost fabric reduces overall cost of vacuum bag process materials.
  • Pin stripes (tracers) make fabric more visible to reduce risk of leaving in place after cure

TECHNICAL DATA

  • Maximum use temperature: 190°C
  • Fiber type: Nylon
  • Weight: 88 g/m²
  • Thickness: 0,152 mm
  • Colour: White
  • Tracers: Red
  • Shelf life: Unlimited when stored in original packaging at 5°C to 40°C
AT-AUD-ECO
274 Items

Download

Name: Airtech Europe Sarl

Adress: 18, Zone Industrielle Haneboesch Differdange, L-4562

Country: Luxembourg

Contact: [email protected]
